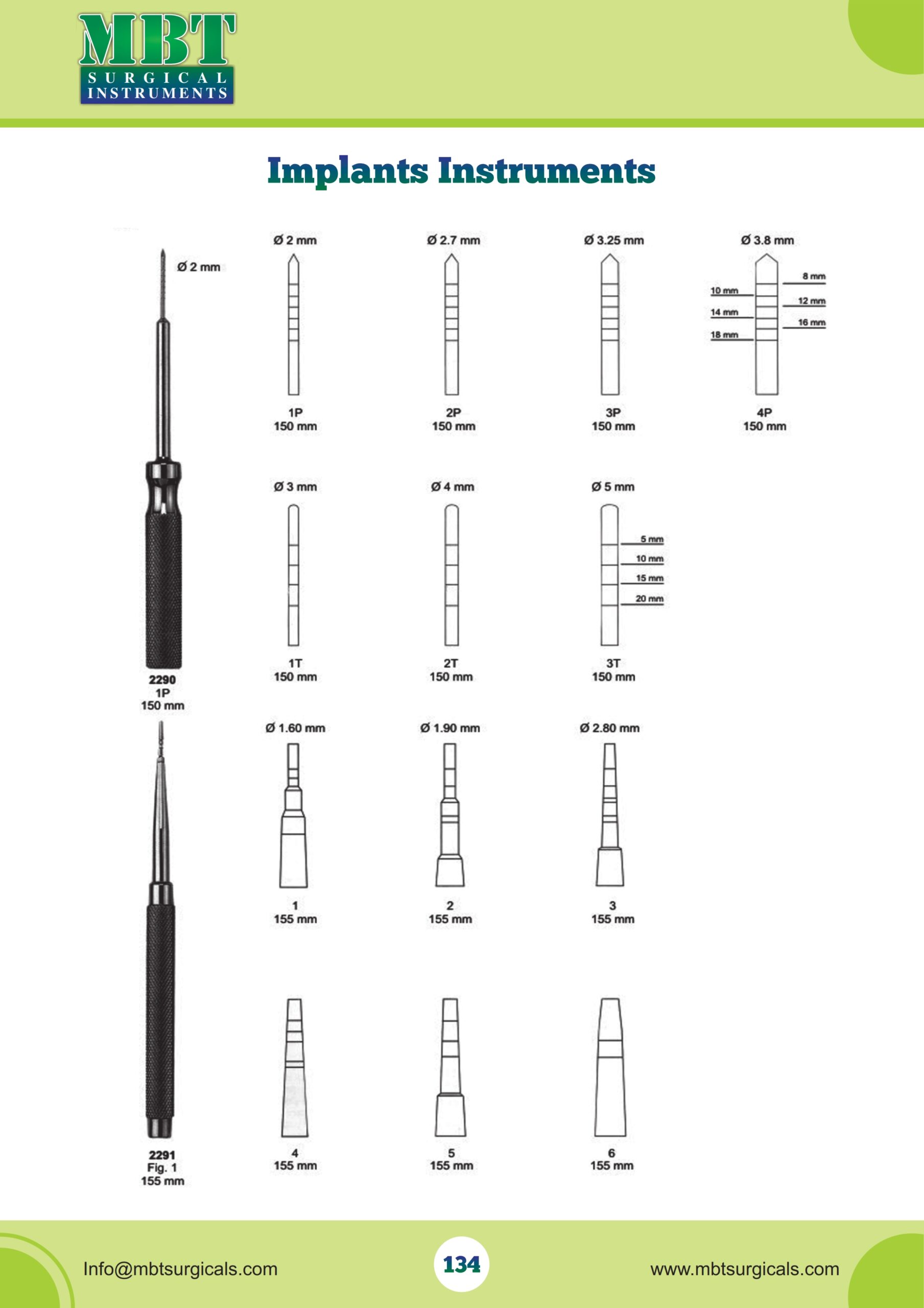

MBT Surgical Instruments’ Implants Instruments Series features a comprehensive Depth Marking Implant Driver & Pin Set engineered for precise osteotomy depth gauging and template positioning during implant placement. The set includes two knurled-handle drivers and thirteen depth-marking pins in a range of diameters (Ø 1.6 mm–Ø 5 mm) with engraved depth graduations. Designed for rigidity and repeatable accuracy, each pin slides into the driver to mark surgical sites at 5 mm–20 mm increments, ensuring reliable implant bed preparation.

Product Specifications:
Driver Handles: Knurled stainless-steel shaft, fully autoclavable
Pin Material: Surgical-grade stainless steel
Graduations: Laser-etched depth markings in millimeters
Sterilization: Fully autoclavable
Application: Implant osteotomy depth gauging, surgical template positioning

Driver Lengths:
• 2290 – Driver for P-series pins, 150 mm overall (Ø 2 mm pin interface)
• 2291 – Driver for tapered pins, 155 mm overall (Fig. 1 interface)

Pin Series & Diameters:

• P-Series (straight pins, 150 mm):

  • 1P – Ø 2.0 mm, 150 mm

  • 2P – Ø 2.7 mm, 150 mm

  • 3P – Ø 3.25 mm, 150 mm

  • 4P – Ø 3.8 mm, 150 mm

• T-Series (tapered pins, 150 mm):

  • 1T – Ø 3.0 mm, 150 mm

  • 2T – Ø 4.0 mm, 150 mm

  • 3T – Ø 5.0 mm, 150 mm

• Tapered Depth Gauges (155 mm):

  • 1 – Ø 1.60 mm, 155 mm

  • 2 – Ø 1.90 mm, 155 mm

  • 3 – Ø 2.80 mm, 155 mm

  • 4 – tapered gauge, 155 mm

  • 5 – tapered gauge, 155 mm

  • 6 – tapered gauge, 155 mm

Why Professionals Choose This Set:
• Knurled drivers for secure, slip-resistant pin insertion
• Broad diameter range for various implant systems
• Laser-etched depth markings for clear visibility
• Fully autoclavable for sterilization compliance
• Robust stainless-steel construction for surgical accuracy

Key Features:
✅ Two precision drivers with knurled handles
✅ Thirteen depth-marking pins (straight & tapered)
✅ Depth graduations from 5 mm to 20 mm
✅ Surgical-grade stainless steel, autoclavable
✅ Versatile compatibility with implant drills and guides
