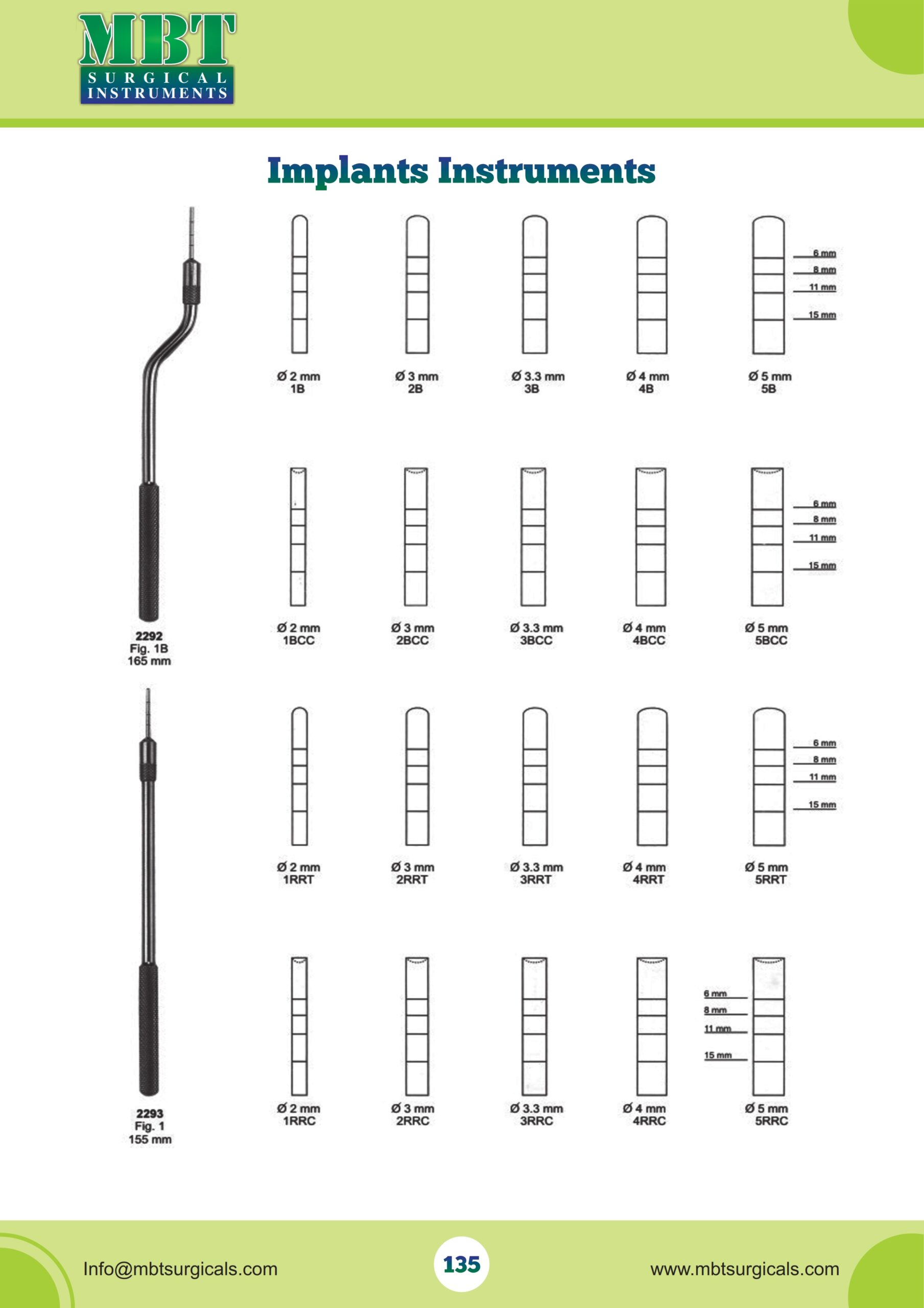

MBT Surgical Instruments’ Curved & Straight Depth Marking Implant Driver & Pin Set provides complete site-depth verification for implant osteotomies. The set features two precision drivers—one curved (Fig. 1B) and one straight (Fig. 1)—with knurled stainless-steel shafts for non-slip control, plus twenty depth-marking pins in four series. Each pin is laser-etched with graduated markings, enabling accurate depth gauging from 6 mm to 15 mm across diameters from 2.0 mm to 5.0 mm. This comprehensive kit ensures reliable, repeatable implant bed preparation in all clinical scenarios.

Product Specifications:
Drivers: Knurled stainless-steel handles, fully autoclavable
Pin Material: Surgical-grade stainless steel
Graduations: Laser-etched depth markings in millimeters (6 mm, 8 mm, 11 mm, 15 mm)
Sterilization: Fully autoclavable
Application: Implant depth gauging, surgical guide verification

Driver Lengths:
• 2292 – Curved driver (Fig. 1B), 165 mm overall
• 2293 – Straight driver (Fig. 1), 155 mm overall

Pin Series & Diameters:

• B-Series (150 mm straight pins):

  • 1B – Ø 2.0 mm

  • 2B – Ø 3.0 mm

  • 3B – Ø 3.3 mm

  • 4B – Ø 4.0 mm

  • 5B – Ø 5.0 mm

• BCC-Series (150 mm curved pins):

  • 1BCC – Ø 2.0 mm

  • 2BCC – Ø 3.0 mm

  • 3BCC – Ø 3.3 mm

  • 4BCC – Ø 4.0 mm

  • 5BCC – Ø 5.0 mm

• RRT-Series (155 mm straight tapered pins):

  • 1RRT – Ø 2.0 mm

  • 2RRT – Ø 3.0 mm

  • 3RRT – Ø 3.3 mm

  • 4RRT – Ø 4.0 mm

  • 5RRT – Ø 5.0 mm

• RRC-Series (155 mm curved tapered pins):

  • 1RRC – Ø 2.0 mm

  • 2RRC – Ø 3.0 mm

  • 3RRC – Ø 3.3 mm

  • 4RRC – Ø 4.0 mm

  • 5RRC – Ø 5.0 mm

Why Professionals Choose This Kit:
• Two driver styles for straight or curved access
• Broad diameter range for diverse implant systems
• Laser-etched graduations for clear depth visualization
• Knurled handles ensure slip-resistant control
• Fully autoclavable for sterilization compliance

Key Features:
✅ Curved and straight autoclavable drivers
✅ Twenty precision depth-marking pins
✅ Graduations at 6 mm, 8 mm, 11 mm, and 15 mm
✅ Surgical-grade stainless steel construction
✅ Enhanced versatility for implant site preparation
