The MBT Vario Retractor System (U.S. Patent pending; German Fed. Patent & Registered Design) features a single ergonomic handle (Cat. No. 03-5250) and 42 interchangeable L-shaped blades in six depths and seven widths. Crafted from surgical-grade stainless steel, each blade locks securely into the handle for stable retraction in deep and narrow operative fields. Precision-forged edges provide atraumatic tissue control, and the modular design lets surgeons tailor retraction geometry on the fly. Blades and handle are fully autoclavable for repeated use in any surgical suite.

Product Specifications:

• Handle (included): Cat. No. 03-5250 universal Vario retractor handle

• Blade Material: 100% surgical-grade stainless steel

• Sterilization: Fully autoclavable (steam, EO, or low-temperature)

• Depth Options: 2.17″, 2.95″, 3.74″, 4.53″, 5.31″, 5.71″ (55 mm, 75 mm, 95 mm, 115 mm, 135 mm, 145 mm)

• Width Options: 0.55″, 0.71″, 0.87″, 1.02″, 1.18″, 1.57″, 1.97″ (14 mm, 18 mm, 22 mm, 26 mm, 30 mm, 40 mm, 50 mm)

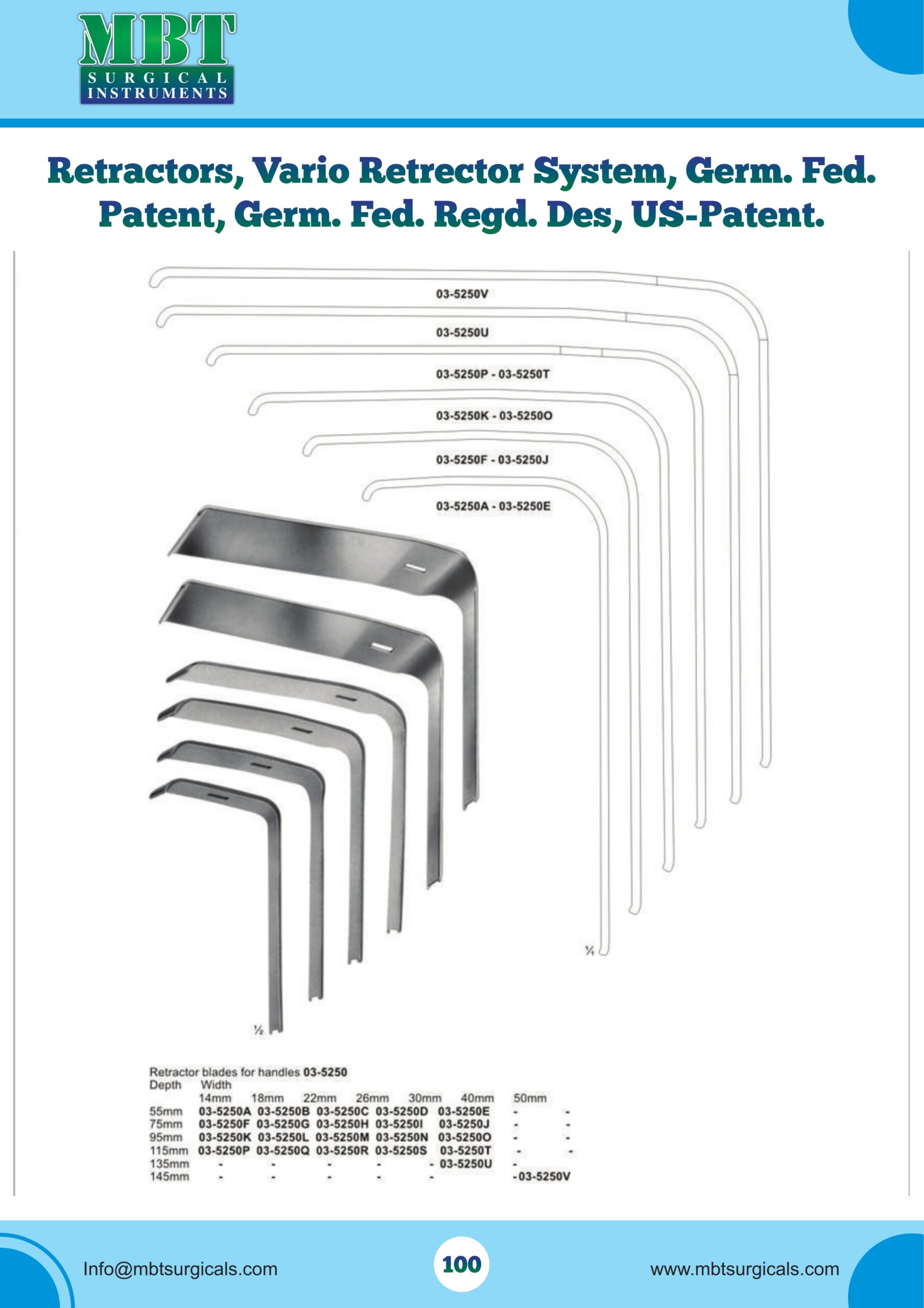

Blade Catalog (Cat. No. → Depth × Width)

• 55 mm Depth

  • 03-5250 A → 55 mm × 14 mm (2.17″ × 0.55″)

  • 03-5250 B → 55 mm × 18 mm (2.17″ × 0.71″)

  • 03-5250 C → 55 mm × 22 mm (2.17″ × 0.87″)

  • 03-5250 D → 55 mm × 26 mm (2.17″ × 1.02″)

  • 03-5250 E → 55 mm × 30 mm (2.17″ × 1.18″)

• 75 mm Depth

  • 03-5250 F → 75 mm × 14 mm (2.95″ × 0.55″)

  • 03-5250 G → 75 mm × 18 mm (2.95″ × 0.71″)

  • 03-5250 H → 75 mm × 22 mm (2.95″ × 0.87″)

  • 03-5250 I → 75 mm × 26 mm (2.95″ × 1.02″)

  • 03-5250 J → 75 mm × 30 mm (2.95″ × 1.18″)

• 95 mm Depth

  • 03-5250 K → 95 mm × 14 mm (3.74″ × 0.55″)

  • 03-5250 L → 95 mm × 18 mm (3.74″ × 0.71″)

  • 03-5250 M → 95 mm × 22 mm (3.74″ × 0.87″)

  • 03-5250 N → 95 mm × 26 mm (3.74″ × 1.02″)

  • 03-5250 O → 95 mm × 30 mm (3.74″ × 1.18″)

• 115 mm Depth

  • 03-5250 P → 115 mm × 14 mm (4.53″ × 0.55″)

  • 03-5250 Q → 115 mm × 18 mm (4.53″ × 0.71″)

  • 03-5250 R → 115 mm × 22 mm (4.53″ × 0.87″)

  • 03-5250 S → 115 mm × 26 mm (4.53″ × 1.02″)

  • 03-5250 T → 115 mm × 30 mm (4.53″ × 1.18″)

• 135 mm Depth

  • 03-5250 U → 135 mm × 30 mm (5.31″ × 1.18″)

  • 03-5250 V → 145 mm × 40 mm (5.71″ × 1.57″)

Key Features:
✅ Fully modular system—one handle plus 14 blade profiles for 42 geometry options
✅ Slim, L-shaped blades optimize deep and narrow field retraction
✅ Secure blade-to-handle locking mechanism for stable positioning
✅ Surgical-grade stainless steel construction resists corrosion and wear
✅ Steam-sterilizable for dependable OR turnover
