Comprehensive Abdominal Retractor Range for Surgical Versatility
MBT Surgicals offers a complete lineup of Doyen and Fritsch abdominal retractors tailored for a wide range of open surgeries. Designed for deep tissue separation and optimal surgical site exposure, these instruments come in multiple lengths and blade widths to suit different patient anatomies and surgical procedures.

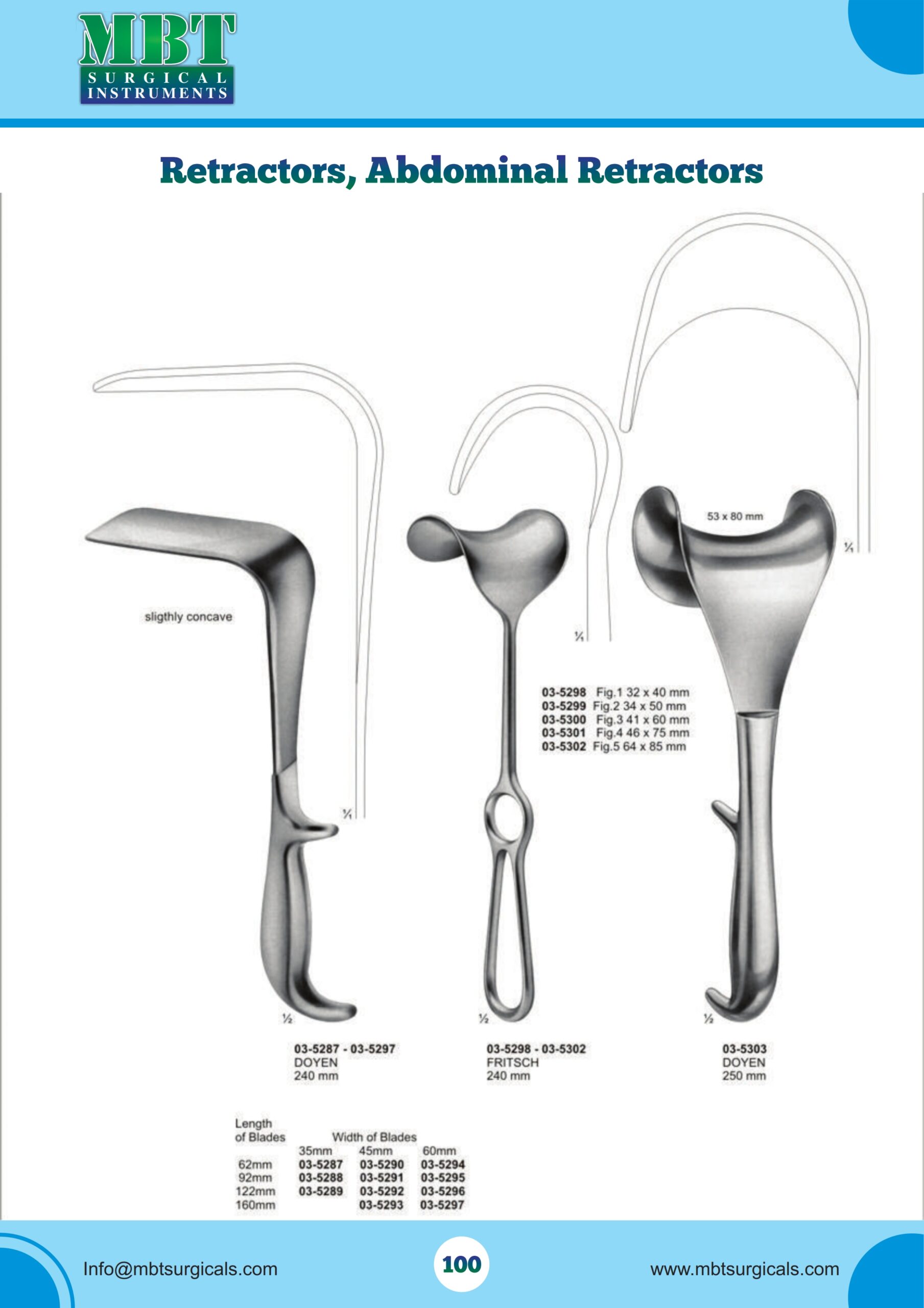

The Doyen Retractors (03-5287 to 03-5303) feature slightly concave blades in varying widths (35 mm, 45 mm, 60 mm) and lengths (62 mm to 160 mm), offering excellent retraction with minimal pressure trauma. These models are favored for general abdominal and gynecological surgeries.
The Fritsch Retractors (03-5298 to 03-5302) are uniquely contoured for pelvic and lower abdominal surgeries and come with loop handles for firm grip and precise positioning.

Both types are forged from surgical-grade stainless steel for enhanced durability and resistance to corrosion across repeated sterilization cycles.

Product Specifications:
Material: Surgical-grade stainless steel
Handle Type: Flat and loop-style handles
Functionality: Deep abdominal wall retraction and tissue separation
Sterilization: Fully autoclavable
Application Area: Abdominal, pelvic, and lower gastrointestinal tract

Lengths:
240 mm (Doyen and Fritsch models), 250 mm (Extended Doyen)
Blade Widths: 35 mm, 45 mm, 60 mm
Blade Lengths: 62 mm, 92 mm, 122 mm, 160 mm

Why Surgeons Choose These Retractors:

• Multiple blade sizes for tailored retraction control

• Slightly concave blades improve soft tissue management

• Loop handles offer superior grip during high-tension procedures

• Suitable for both shallow and deep abdominal work

• Strong construction for reusable hospital-grade performance

Product Variants:

Doyen Retractors – 240 mm:

• 03-5287 (35 mm blade)

• 03-5288 (45 mm blade)

• 03-5289 (60 mm blade)

• 03-5290 to 03-5293 – Various width/length combinations

• 03-5294 to 03-5297 – Extended blade widths

• 03-5303 – Doyen 250 mm (53 x 80 mm blade)

Fritsch Retractors – 240 mm:

• 03-5298 – Fig. 1, 32 x 40 mm

• 03-5299 – Fig. 2, 34 x 50 mm

• 03-5300 – Fig. 3, 41 x 60 mm

• 03-5301 – Fig. 4, 46 x 75 mm

• 03-5302 – Fig. 5, 64 x 85 mm

Key Features:
✅ Available in 35 mm, 45 mm, and 60 mm blade widths
✅ Deep blade lengths up to 160 mm
✅ Both concave and contoured blade profiles
✅ Ergonomic handle options for enhanced control
✅ Reusable, autoclavable stainless steel construction
